T480–T500 Tandem PV Module (480–500 W)
$9,999.00
Full-size tandem photovoltaic module in the 480–500 W power class. The supplied 2026 sample datasheet lists a maximum module efficiency of 25.02%.
T480–T500 Tandem Module
A full-size 480–500 W tandem module with a clean framed design for modern photovoltaic projects.
Built for practical projects.
The 1762 × 1134 × 30 mm format holds 96 cells in a 6 × 16 layout. The sample datasheet lists up to 25.02% module efficiency.
| Rated power | 480–500 W |
| Maximum efficiency | 25.02% (module) |
| Dimensions | 1762 × 1134 × 30 mm |
| Cell layout | 96 cells (6 × 16) |
| Front test load | 5400 Pa |
| Rear test load | 2400 Pa |
| Glass options | Single / dual glass listed |
| Source | 2026 sample datasheet |

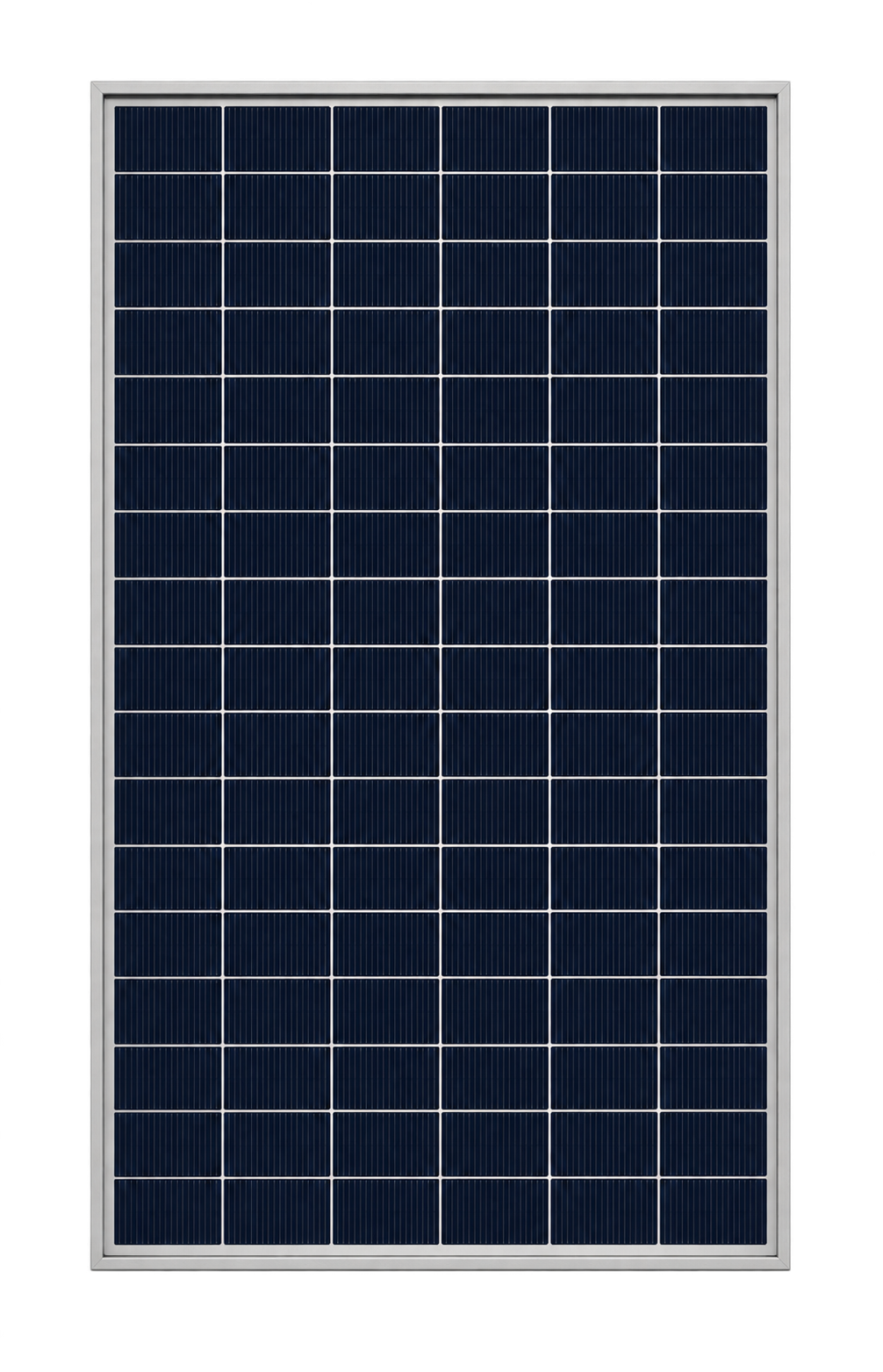

Front View
The module face has a regular cell pattern and a slim silver aluminum frame.

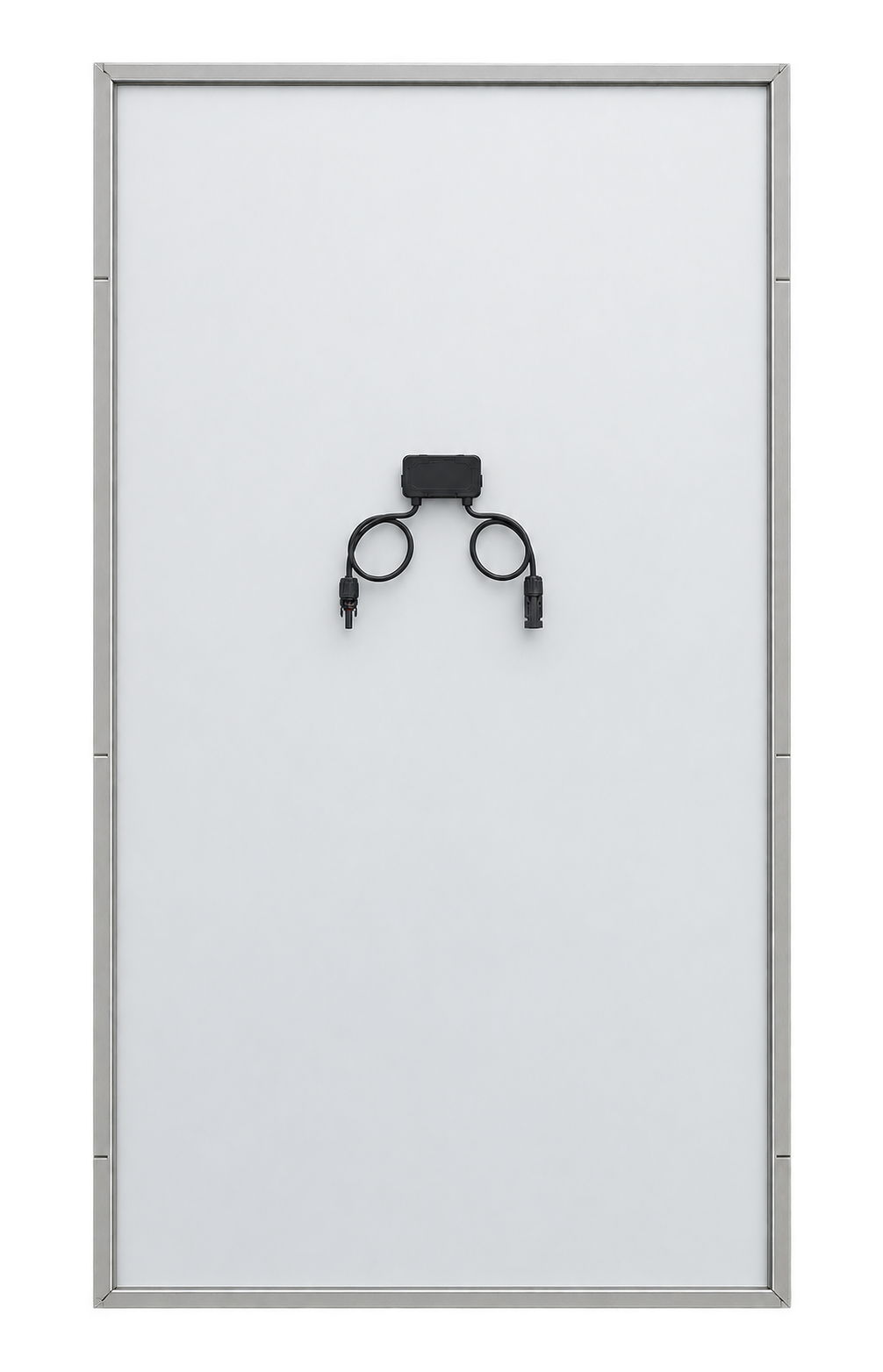

Rear Construction
A rear view makes the backsheet and cable connection area visible.

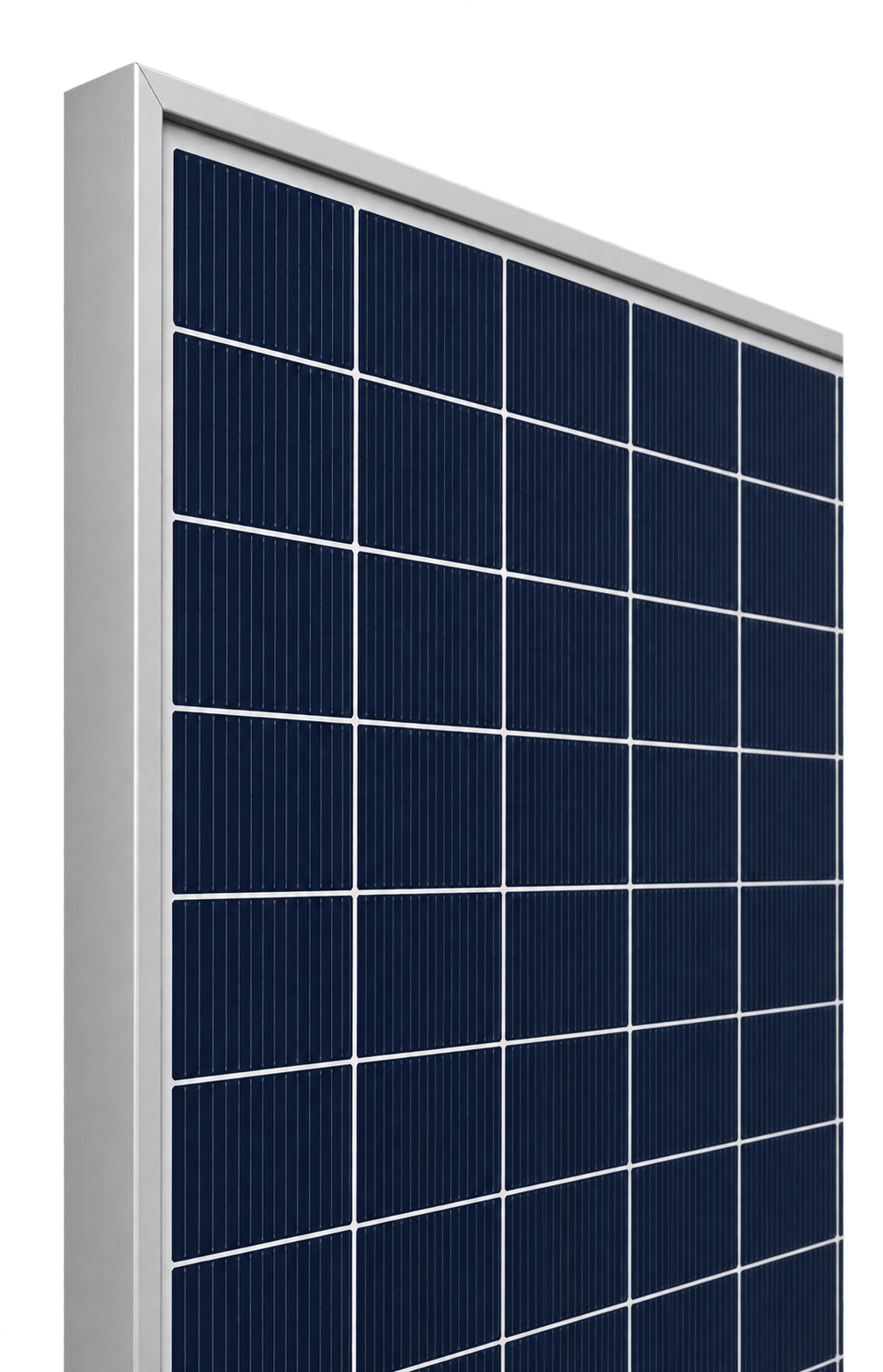

Slim Frame
The 30 mm depth keeps the full-size panel profile visually neat.

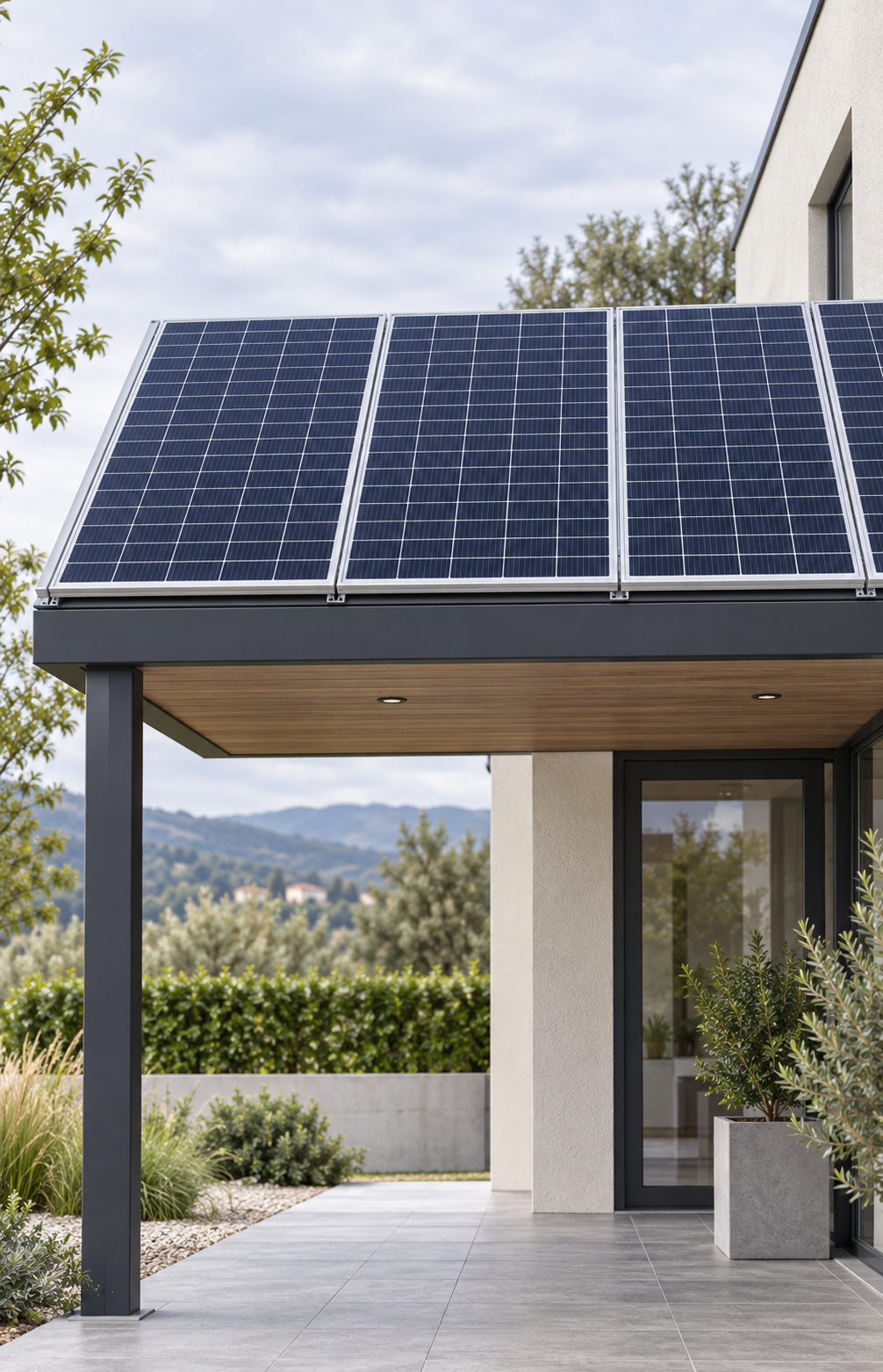

In Application
A project view places the module in a realistic installed setting.
POWER FOR WHAT COMES NEXT
Plan with T480–T500
The 2026 sample specification lists 480–500 W rated output and 5400 / 2400 Pa front / rear test loads. Confirm the selected configuration with our team.
The T480–T500 is a full-size tandem module for PV projects seeking a 480–500 W rated power range. Its clean framed appearance and regular cell layout suit considered module presentations and project planning.
Technical overview
| Rated power | 480–500 W |
|---|---|
| Maximum module efficiency | 25.02% |
| Module dimensions | 1762 × 1134 × 30 mm |
| Cell layout | 96 cells, 6 × 16 |
| Front / rear test load | 5400 / 2400 Pa |
| Construction listed | Single-glass and dual-glass |
Specifications are taken from the supplied 2026 sample datasheet. Confirm the chosen variant and final order specifications.
