T-60 Compact Tandem PV Module (60 W)
$9,999.00
Compact 60 W tandem photovoltaic module for smaller systems. The supplied sample datasheet lists 26%+ peak active-area efficiency and a 580 × 475 × 25 mm format.
T-60 Compact Module
A compact 60 W tandem photovoltaic module for smaller systems and tailored power applications.
Compact by design.
At 580 × 475 × 25 mm, the T-60 suits focused applications. The sample datasheet lists MC4 connections and 26%+ peak active-area efficiency.
| Rated power | 60 W |
| Peak efficiency | 26%+ (active area) |
| Dimensions | 580 × 475 × 25 mm |
| Vmp / Imp | 18.61 V / 3.24 A |
| Voc / Isc | 22.70 V / 3.33 A |
| Connections | MC4 connectors |
| Front / rear load | 5400 / 2400 Pa |
| Source | 2026 sample datasheet |

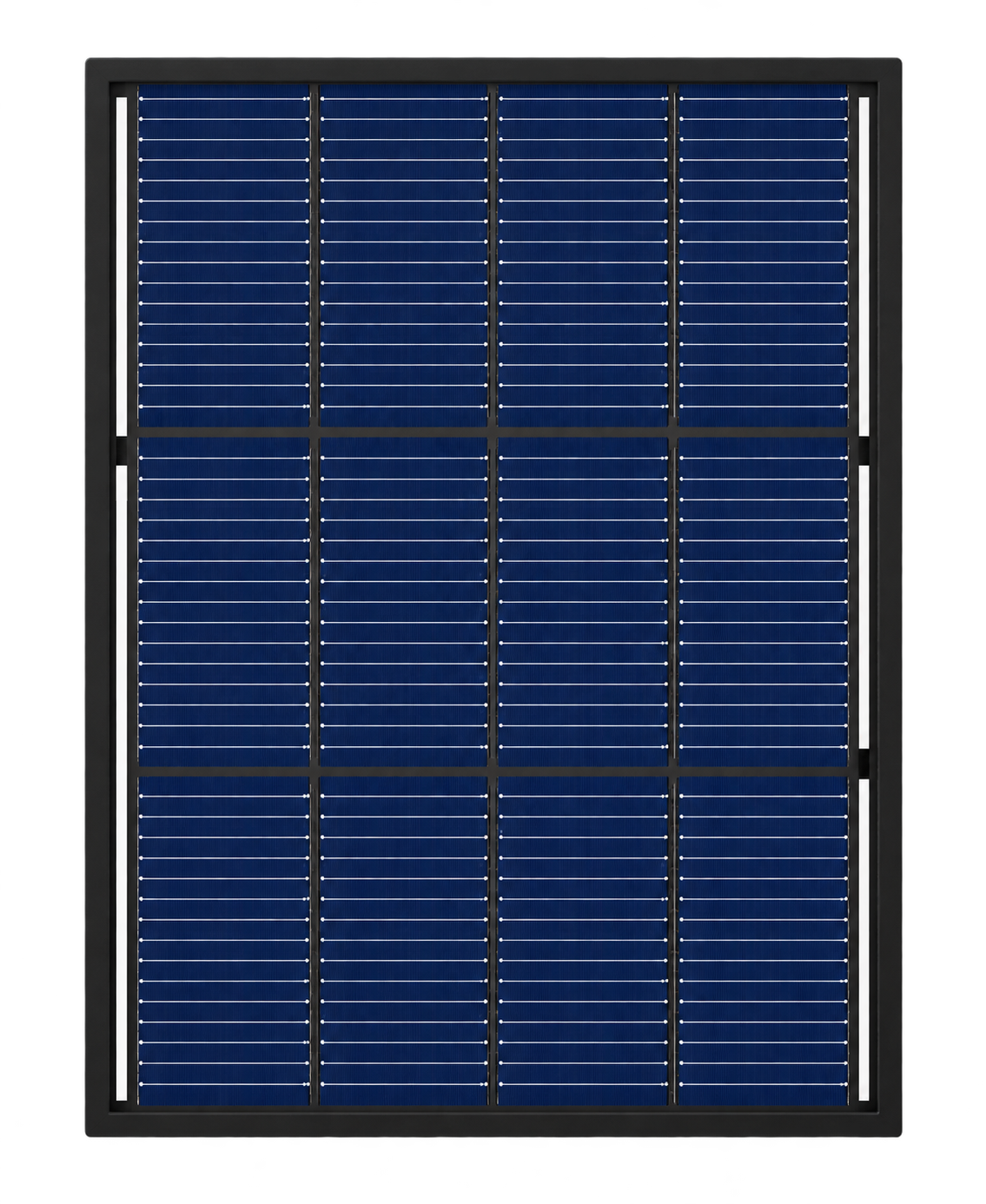

Front View
A compact portrait face with four vertical sections and regular fine horizontal conductor lines.

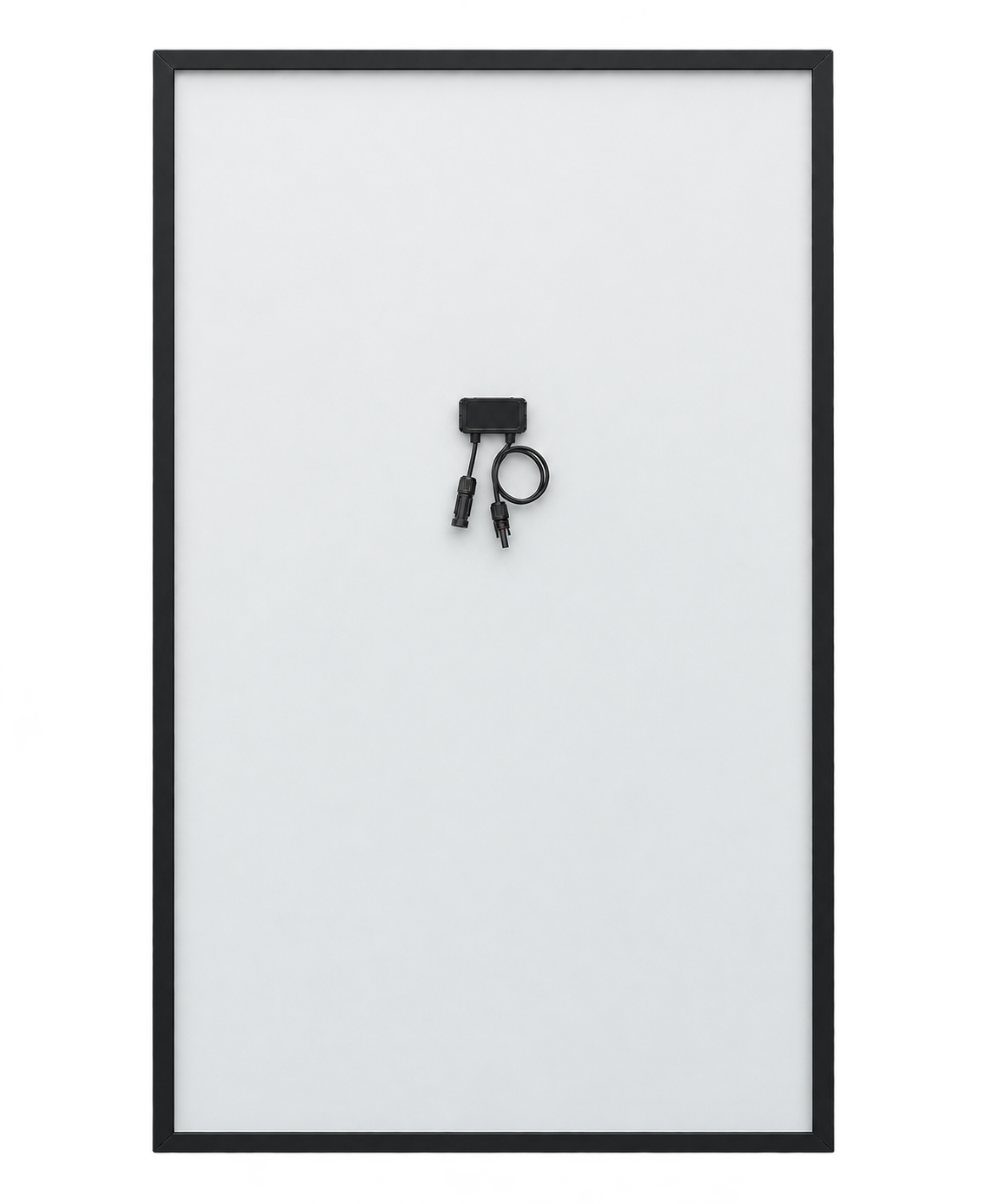

Rear Construction
The rear visualization shows the white backsheet and electrical connection area.

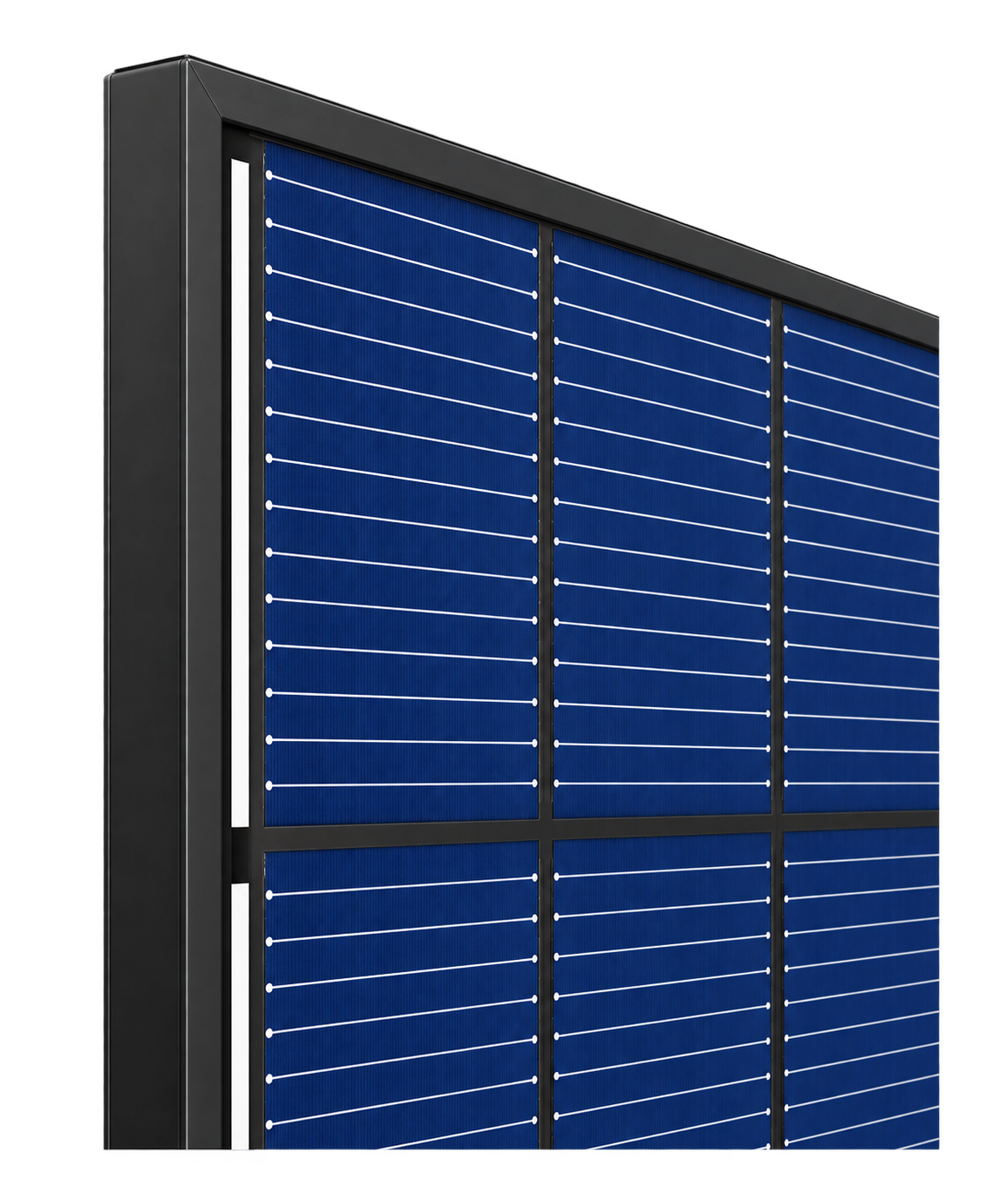

Compact Frame
A 25 mm profile keeps the small module easy to place in a design.

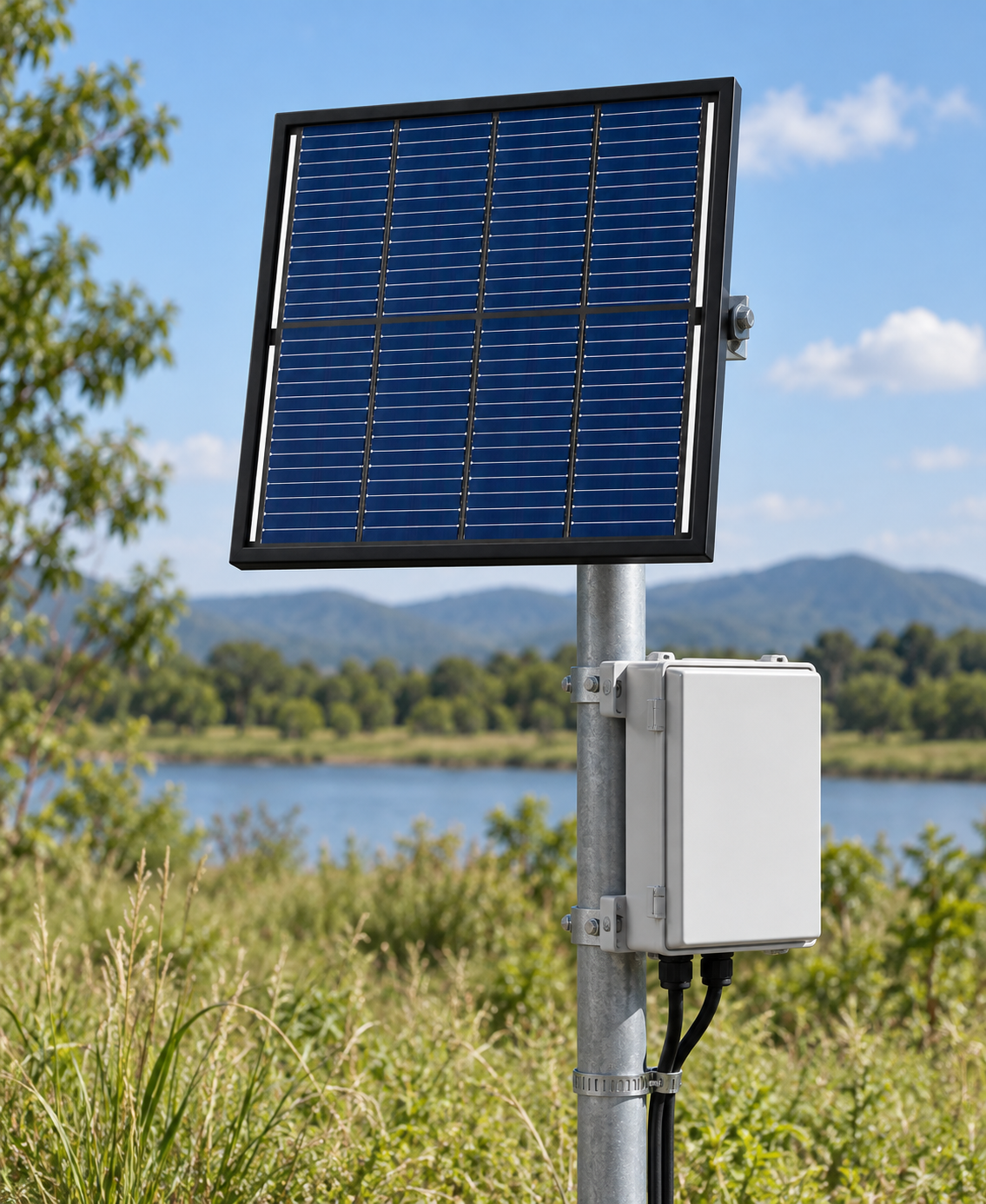

In Application
The small format is suited to lighting, surveillance and custom systems.
POWER FOR WHAT COMES NEXT
Plan with T-60
The 60 W sample specification provides a starting point for street lighting, portable power, vehicle-mounted and other compact projects. Ask us about the final configuration.
The T-60 packs 60 W rated output into a compact panel suited to smaller project concepts. The supplied sample datasheet lists street lighting, surveillance, portable power, vehicle-mounted systems and custom applications.
Technical overview
| Rated power | 60 W |
|---|---|
| Peak active-area efficiency | 26%+ |
| Module dimensions | 580 × 475 × 25 mm |
| Voltage / current at maximum power | 18.61 V / 3.24 A |
| Open-circuit voltage / short-circuit current | 22.70 V / 3.33 A |
| Connections | MC4 connectors; 240 mm / 4 mm² output cables |
| Front / rear test load | 5400 / 2400 Pa |
The efficiency figure refers to active area. Electrical figures use standard test conditions and are based on the supplied 2026 sample datasheet. Confirm final order specifications.
